Exercise 1: Alternator

The file to download after the purchase contains a document with the detailed explanations
(System presentation, Differential equation determination, Connection of the blocks for the constitution of the Simulink model, Visualization and analysis of the results of the simulation) to simulate an Alternator with Simulink.
This file also contains the Simulink model file "solution.mdl" which is a solution that has been determined that you can test and modify.

Software needed:
  • Adobe Acrobat reader or Microsoft word (to read the explanations which allowed to find a Simulink model)Download

  • WinRAR or WinZip (to open “RAR” files)Download

  • Matlab / Simulink (to check or modify the solution)Download

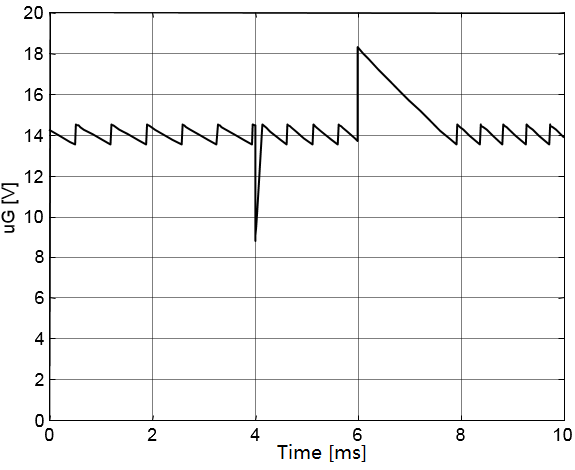

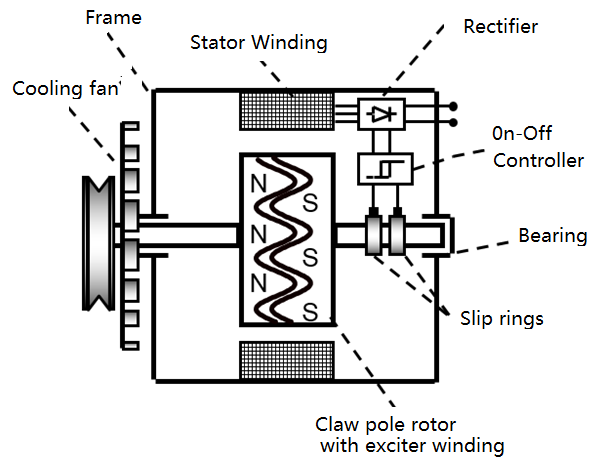

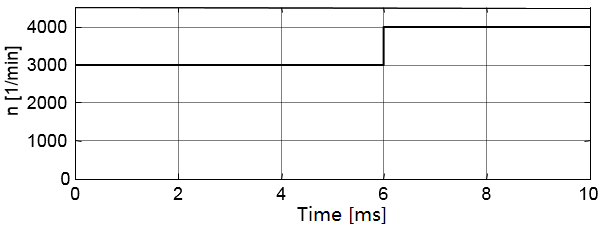

    • The system : Alternator Visualization of the voltage generated by the alternator Visualization of the rotor mechanical speed (rotation speed)

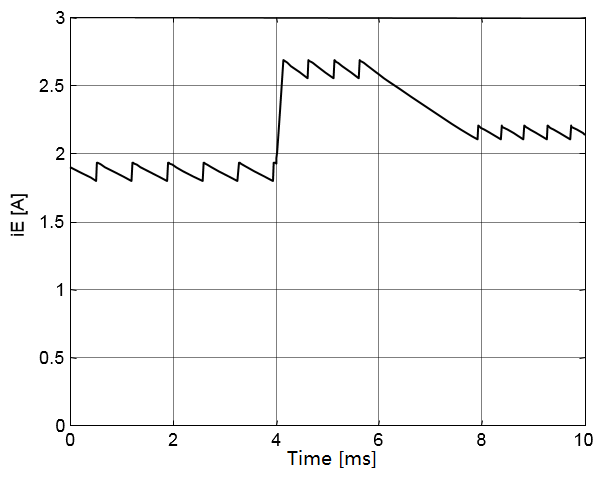

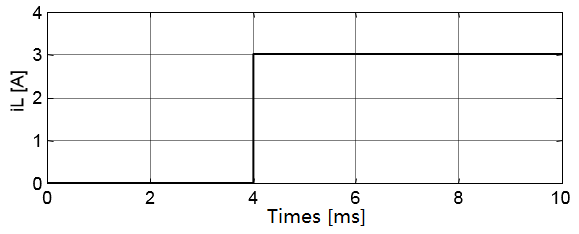

    Visualization of the current consumed by the electrical equipment Visualization of the excitation current

    Price :
    $US 5

    £3.59

    4,13 €

    No right of withdrawal
