Exercise 2: Non-stationary heat transport / Subsystem

The file to download after the purchase contains a document with the detailed explanations
(System presentation, Differential equation determination, Connection of the blocks for the constitution of the Simulink model, Visualization and analysis of the results of the simulation) to simulate a Non-stationary heat transport with Simulink.
This file also contains the Simulink model file "solution.mdl" which is a solution that has been determined that you can test and modify.

Software needed:
  • Adobe Acrobat reader or Microsoft word (to read the explanations which allowed to find a Simulink model)Download

  • WinRAR or WinZip (to open “RAR” files)Download

  • Matlab / Simulink (to check or modify the solution)Download

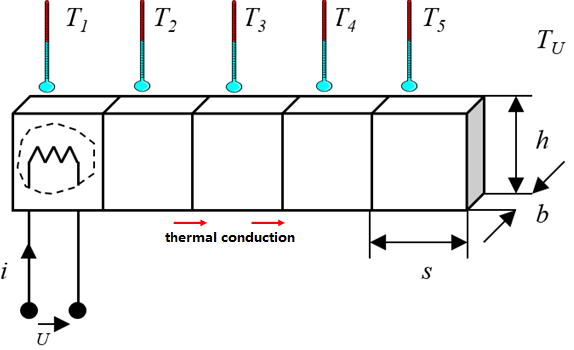

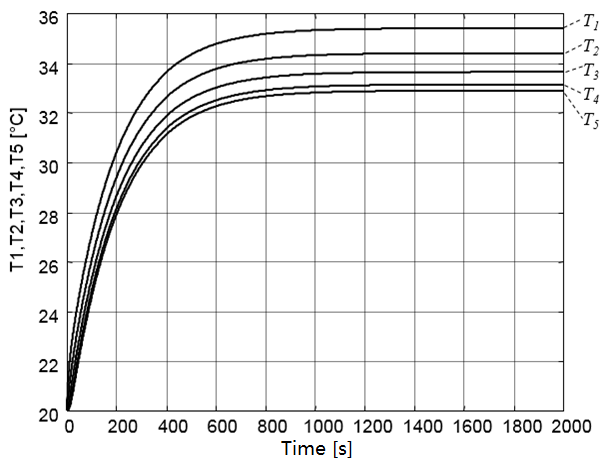

    • Electrically heated copper rod Visualization of the evolution of the temperature in the different segments

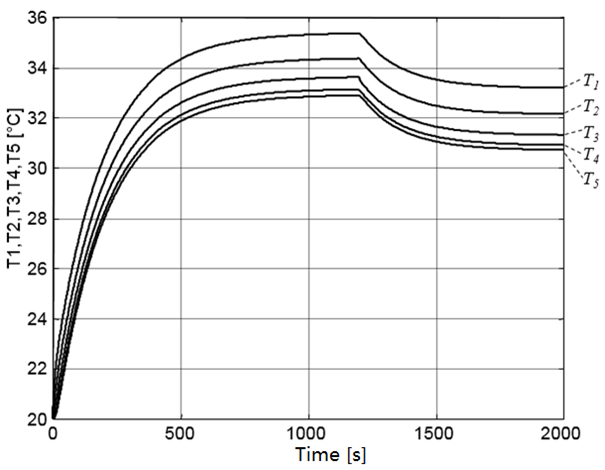

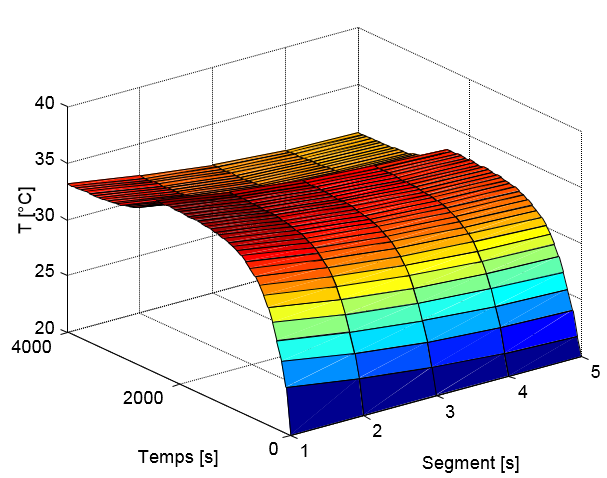

    Visualization of the evolution of the temperature in the different segments with a multiplication by 2 at t = 1200 s of the heat transfer coefficient α of segment 3 3-D visualization of the last figure
